Ready-to-install, secure process monitoring — controller, I/O, enclosure, and power in one part number.

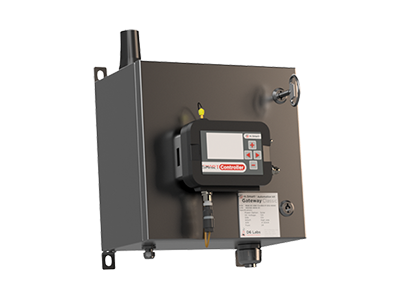

The MAK Gateway is a complete automation kit for process-monitoring applications — water towers, master meters, leak detection, generators, and similar sites. The kit includes a SmartController, one Universal I/O module, a NEMA 4-rated enclosure, and a choice of solar or SmartUPS power. Monitor tower level, pressure, flow rate, and other parameters locally on the sunlight-readable LCD or remotely through Whisker.io®.
All tags — scaling, Modbus parameters, engineering units — are configured in the cloud. The MAK automatically pulls down the latest configuration as it changes, so commissioning and updates happen without a field laptop.
| Part Number | Description |
|---|---|
| MAK-SC-GW-U-1-S-050-P-1212-000 | 50 W solar, 1 Universal I/O, polycarb 12×12″ enclosure |
| MAK-SC-GW-U-1-S-050-S-1111-000 | 50 W solar, 1 Universal I/O, stainless 11×11″ enclosure |
| MAK-SC-GW-U-1-S-050-C-1111-000 | 50 W solar, 1 Universal I/O, carbon steel 11×11″ enclosure |
| MAK-SC-GW-U-1-S-100-P-1614-000 | 100 W solar, 1 Universal I/O, polycarb 16×14″ enclosure |
| MAK-SC-GW-U-1-S-100-S-1513-000 | 100 W solar, 1 Universal I/O, stainless 15×13″ enclosure |
| MAK-SC-GW-U-1-S-100-C-1513-000 | 100 W solar, 1 Universal I/O, carbon steel 15×13″ enclosure |
| MAK-SC-GW-U-1-B-006-P-1614-000 | 144 W SmartUPS, 1 Universal I/O, polycarb 16×14″ enclosure |
| MAK-SC-GW-U-1-B-006-S-1513-000 | 144 W SmartUPS, 1 Universal I/O, stainless 15×13″ enclosure |
| MAK-SC-GW-U-1-B-006-C-1513-000 | 144 W SmartUPS, 1 Universal I/O, carbon steel 15×13″ enclosure |
| MAK-SC-GW-U-1-B-015-P-1614-000 | 360 W SmartUPS, 1 Universal I/O, polycarb 16×14″ enclosure |
| MAK-SC-GW-U-1-B-015-S-1513-000 | 360 W SmartUPS, 1 Universal I/O, stainless 15×13″ enclosure |
| MAK-SC-GW-U-1-B-015-C-1513-000 | 360 W SmartUPS, 1 Universal I/O, carbon steel 15×13″ enclosure |
Real MAK Gateway installations from across our customer base.
All D6 Labs' products are designed and built by our team of engineers and technicians in the heartland of the USA. We do not outsource any part of our business so when you need support, you are talking directly to the people who design and build our product. We maintain stock on all parts so a replacement is just a phone call away.
