One DIN-rail module covers towers, master meters, lift stations, and booster pumps.
The m.Smart Universal I/O Module is a Modbus RTU I/O expansion device sized for the most common water and wastewater monitoring and control tasks. A single module supports solar/battery monitoring, 4–20 mA pressure or level sensors, pulse-output flow meters, VFD speed and run, contactor pump control, and float inputs — everything you need to instrument a tower, master meter, pump, or lift station pump.

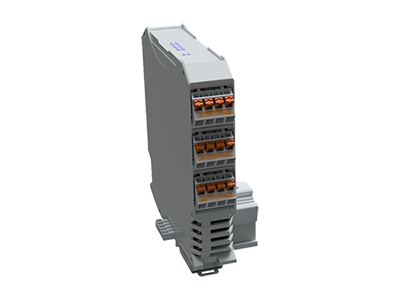

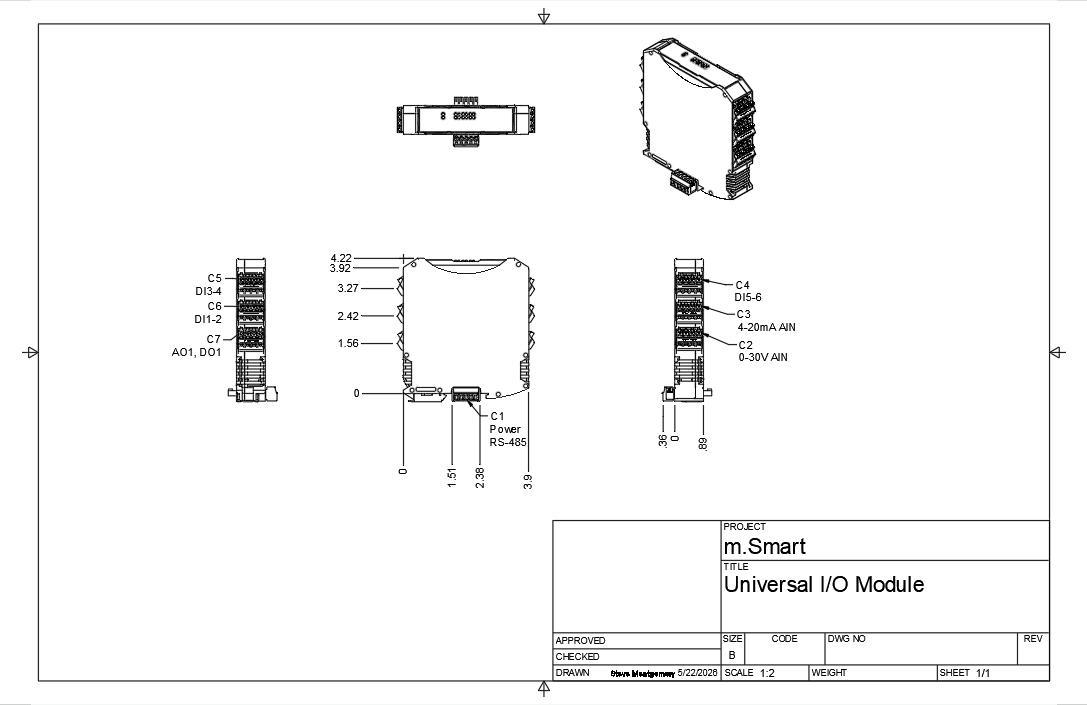

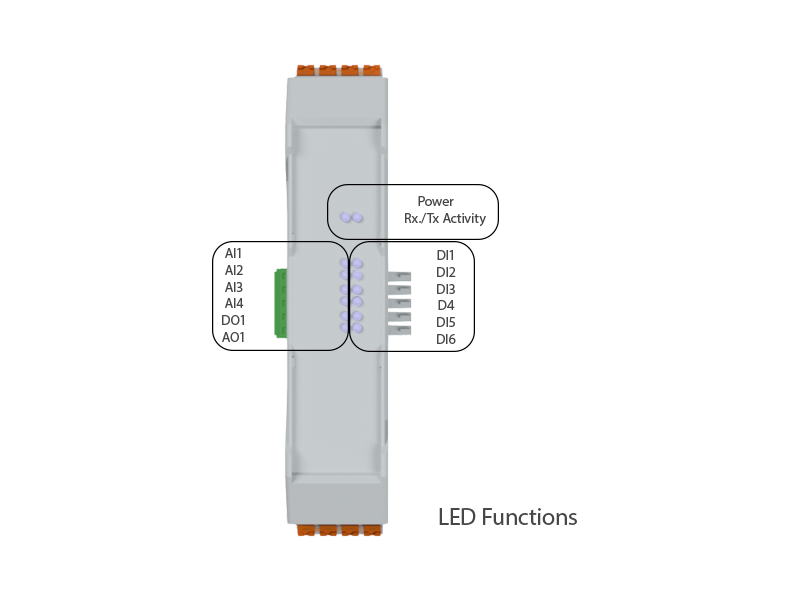

The module mounts to a Phoenix Contact ME MAX 22,5 DIN-rail housing. Power and Modbus are delivered through the DIN-rail bus connector, while six 4-position pluggable spring-cage headers carry all field wiring. Eighteen front-panel status LEDs show Modbus TX/RX, every digital state, and analog validity at a glance.
| m.Smart™ Universal I/O Module | |
|---|---|
| Supply Voltage | 8–30 V DC via DIN-rail bus connector |
| Communications | Modbus RTU (RS-485) via DIN-rail bus connector |
| Baud Rates | 9600, 19200, 38400, 115200 (default 9600) |
| Digital Inputs | 6 channels — state, total counts, events/min |
| Analog Inputs (0–30 V) | 2 channels (AI1, AI2) — solar / battery voltage |
| Analog Inputs (4–20 mA) | 2 channels (AI3, AI4) — pressure / level sensors |
| Internal Supply Monitor | 1 channel (AI5) — module supply voltage readback |
| Digital Output | 1 channel (DO1) |
| Analog Output | 1 channel (AO1) — 0–10 V DC for VFD speed |
| Sample Rate | Configurable, default 10 Hz (100 ms) |
| Enclosure | Phoenix Contact ME MAX 22,5 3-3 KMGY DIN-rail housing |
| Field Connectors | 6 × 4-position pluggable headers, 5 mm pitch, spring-cage |
| Status Indicators | 18 front-panel LEDs (Modbus TX/RX + every I/O channel) |
