Local automation, secure remote monitoring and control — in one IP67 device.

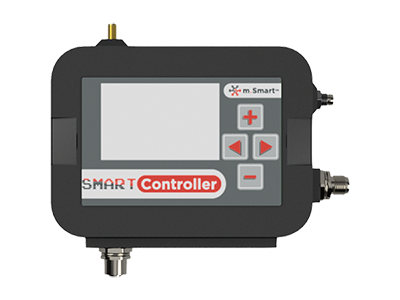

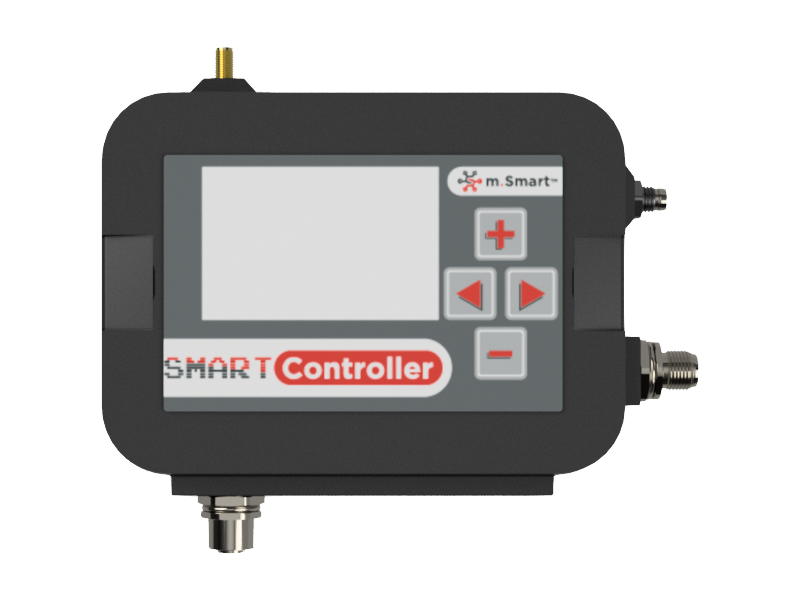

The SmartController™ combines the functions of a PLC, HMI, and secure cloud gateway into a single device. The 2.7″ sunlight-readable LCD lets operators view every process value and change setpoints and modes locally. Customize automation logic in Python, expand I/O over Modbus RTU, and stay connected to the cloud over a secure, double-encrypted cellular link.
The IP67-rated PETG-CF enclosure is waterproof, UV-stable, and chemically resistant — it doesn't degrade in direct sunlight and doesn't need a secondary enclosure. Two M12 connectors are pre-wired for power and two RS-485 Modbus ports (client and server).
| SmartController™ Classic — P/N MS-SC-DAN-MWD0-0000 | |
|---|---|
| Supply Power | 9–30 V DC |
| Power Consumption | < 200 mW |
| Modbus RTU Client | RS-485, M12 A-code female |
| Modbus RTU Server | RS-485, M12 A-code male |
| Cellular Radio | CAT-M1 — AT&T, T-Mobile, Verizon |
| Encryption | AES-256 (double) |
| Cloud Update Period | 1 minute (up to 64 process variables) |
| Antenna | 3 dBi omnidirectional, 9 dBi high gain |
| Enclosure Rating | IP67 |
| Enclosure Material | PETG-CF (carbon-fiber reinforced) |
| Operating Temperature | -40 to +85°C |
| Size | 4.57″ × 5.91″ |
| Mounting | Two 4 mm screw holes |
Real SmartController Classic installations from across our customer base.
All D6 Labs' products are designed and built by our team of engineers and technicians in the heartland of the USA. We do not outsource any part of our business so when you need support, you are talking directly to the people who design and build our product. We maintain stock on all parts so a replacement is just a phone call away.
